手工膠槍玻璃膠槍硅膠熱熔膠機/離型紙熱熔膠機
為高精度模組化涂布站機構組合裝配，可連續式涂布打樣或小量生產的實驗室迷你型熱熔膠涂布貼合機?？梢詫崛蹓好裟z直接涂布于耐熱基材，或涂布于離型紙上再將膠膜轉圖貼合于個中國不同面材上，如紙張、塑料模型金屬膜等。
連續式熱熔膠涂布貼合實驗機性能特點
·全機為高精度模組化涂布站結構組合裝配。
·以百分表為分度頭做微調上下膠輪涂布間隙來控制涂布厚度。低上膠厚度為0.01mm。厚度設定后，可以間接鎖定膠輪，防止間隙改變。
·大涂布寬幅為280mm。徒步寬幅以膠槽內兩片Teflon擋板來調整?？梢詿o(wú)限長度涂布上膠，自動收卷。
·正反轉無級變速，好涂布速度：4.5m/min
·放料卷軸可調整旋鈕改變張力放料。
·收料卷軸可調整機械式張力控制收取。
·加溫棒，上膠輪與膠槽可以從機體快速拆卸分離來清殘膠。
·機臺尺寸：1150 * 518 (含電機為720) * 658 mm (長*寬*高)
·機臺重量：約120 kg
·機臺電源： AC 220 V (單相)/50Hz
·機臺功率： 1050 w

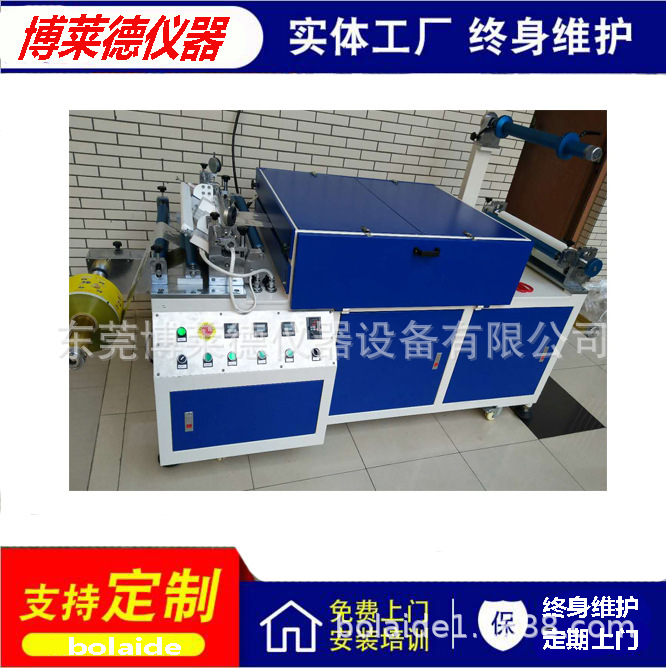

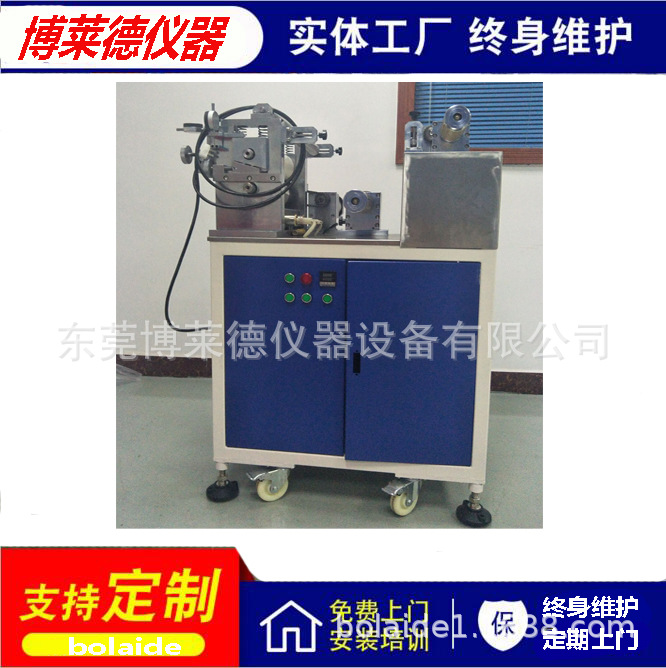

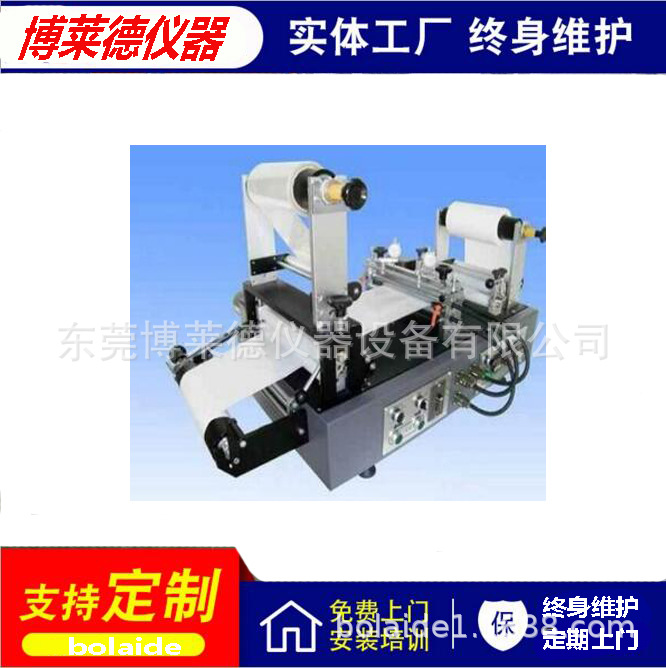

Manual glue gun glass glue gun silicone heat Hu glue / glass glue coating experiment machine
For the high precision modular coating station mechanism assembly, can be used for continuous coating proofing or small production of laboratory Mini hot melt adhesive coating machine. Hot melt pressure sensitive adhesive can be directly coated on the heat resistant substrate, or coated on the release of the paper and then transferred to the plastic film on the surface of a different Chinese material, such as paper, plastic models, such as metal film.
Performance characteristics of continuous hot melt adhesive coating and laminating machine
The whole machine is a high precision modular coating station structure assembly.

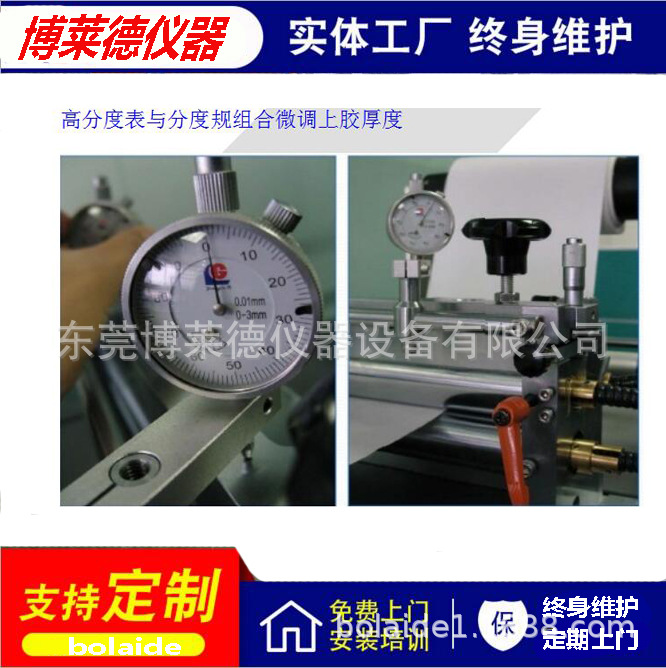

The dial indicator as dividing head accurately on wheel trimming to control the coating thickness of the coating gap. The lowest glue thickness is 0.01mm. Thickness set, you can directly lock the rubber wheel to prevent the gap change.
Max coating width of 280mm. Foot width to two Teflon glue slot to adjust. Can be coated with unlimited length, automatic winding.
Positive and reverse stepless speed change, the best coating speed: 4.5m/min

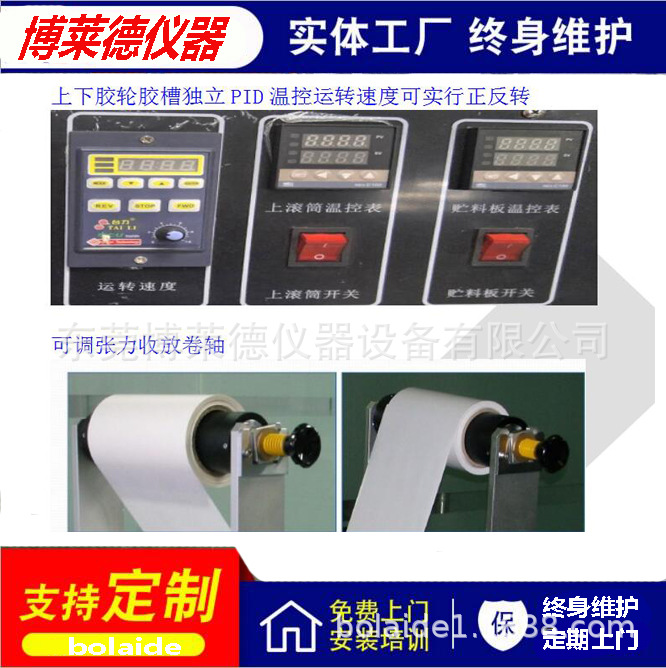

The discharge reel can be adjusted to change the tension release.
Receiving reel can be adjusted by mechanical tension control.
Heating rod, rubber wheel and rubber trough can be quickly removed from the body to remove residual rubber.
* machine size: 1150 * 518 (including motor is 720) * mm (L * w * h)
Machine weight: about 120 kg
Machine power: AC 220 V (Dan Xiang) /50Hz
Machine power: 1050 w
