水果刀刀具鋒利度測試機/水果刀刀具鋒度試驗機/刀刃鋒利度測試

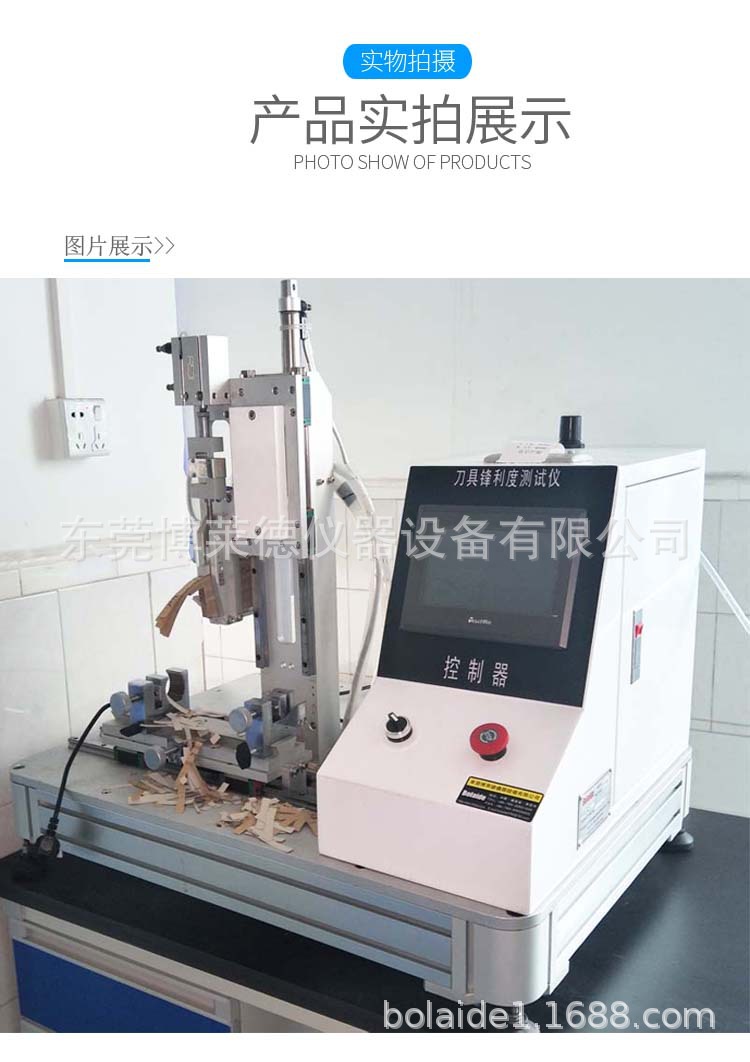

刀具鋒利度測試儀是用于測試刀具鋒利度的優異專用測試設備，可進行兩種標準測試：國際標準《ISO 8442-5:2004刀具的鋒利度和刀刃保持試驗》、中國標準《QBT 2141.2-1995日用小刀鋒利度測試方法》。該機由智能控制器、大功率驅動機構、精密測距機構、大屏幕液晶顯示器、打印機等部分組成，實現三軸運動的模擬切割與沖擊切割。屏幕采用全中文顯示，用鍵盤控制光標進行選項、操作、設定。操作簡單方便，具備試樣定壓、自動定位、刀具自動復位切割等功能。該型產品是五金刀具企業、檢驗機構、科研機構及大專院校等單位理想的檢測、試驗設備。
產品特點
? 可進行兩種標準的刀具鋒利度測試，完全符合國際標準BS EN ISO 8442-5:2004和中國標準QBT 2141.2-1995；
? 可測試各種長度刀具，包括1CM~5CM及5CM以上刀刃具；
? 方便、準確的試樣定壓結構；
? 精密的測距機構，保證測試的準確性；
? 大功率電機驅動機構，上乘模擬切割過程；
? 大屏幕液晶，全中文顯示；操作界面友好，使用簡便；
? 以圖形曲線方式實時顯示刀具的切程；
? 成組測試，自動進行數據統計與打??；
? 多種**保護模式，保證刀刃與試驗**；
? 人性化的合理結構布局，保證測試人員**性。
技術指標
? 測量誤差 0.02mm (ISO, QBT)
? 分 辨 率 0.001mm (ISO, QBT)
? 切 割 量 50mm (ISO, QBT)
? 切割行程 40mm (ISO)
? 切割速度 50mm/s (ISO)
? 試樣壓力 1300N (ISO)
? 切割壓力 50N (ISO)
? 沖擊行程 200mm (QBT)
? 可測刃長 >=10mm (QBT)
>=50mm (ISO)
? 刀夾距離 130mm（可選配刀刃夾具）
? 顯示屏幕 320X240大屏幕
? 打 印 機 熱敏型微打
? 主機尺寸 600mm×500mm×780mm(W×D×H)
? 主機凈重 72Kg
? 電 源 AC 220V50Hz200W
Fruit knife with sharpness tester / fruit cutter front tester / edge sharpness test
The blade sharpness tester is used to test the sharpness of cutting tool of high-end special testing equipment, which can carry two standard test: international standard "ISO 8442-5:2004 tool sharpness and edge holding test", Chinese standard "QBT 2141.2-1995" test method of daily sharp knife. The machine is composed of intelligent controller, high power drive mechanism, precise distance measuring device, large screen LCD and printer. It realizes three axis movement simulation cutting and impact cutting. The screen is displayed in all Chinese, and the cursor is controlled by the keyboard for options, operation and setting. The operation is simple and convenient. It has the functions of sample constant pressure, automatic positioning, automatic cutting and cutting of tools. This type of product is the ideal testing and testing equipment for hardware cutting tools enterprises, inspection institutions, scientific research institutions and colleges and universities.
Product features
Two standard tool sharpness tests can be carried out, in full compliance with international standards BS, EN, ISO, 8442-5:2004 and China standard QBT 2141.2-1995;
It can test various length of tool, including 1CM~5CM and 5CM cutting tools;
Convenient and accurate specimen pressure setting structure;
O precise distance measuring mechanism to ensure the accuracy of the test;
High power motor drive mechanism, perfect simulation cutting process;
Large screen LCD, full Chinese display, friendly interface, easy to use;
To show the cutting path of cutter in real time;
Group testing, automatic data statistics and printing;
Various safety protection modes to ensure blade and test safety;
Human rational structure and layout to ensure the safety of testers.
Technical index
Measure error 0.02mm (ISO, QBT)
Resolution 0.001mm (ISO, QBT)
O cutting amount 50mm (ISO, QBT)
O cutting stroke 40mm (ISO)
O cutting speed 50mm/s (ISO)
Sample pressure 1300N (ISO)
O cutting pressure 50N (ISO)
O impact stroke 200mm (QBT)
Measure blade length >=10mm (QBT)
>=50mm (ISO)
O knife clip distance 130mm (optional blade holder)
O display screen 320X240 large screen
Printer heat sensitive type micro
Please host size 600mm * 500mm * 780mm (W * D * H)
Host net weight 72Kg
Power AC 220V50Hz200W
